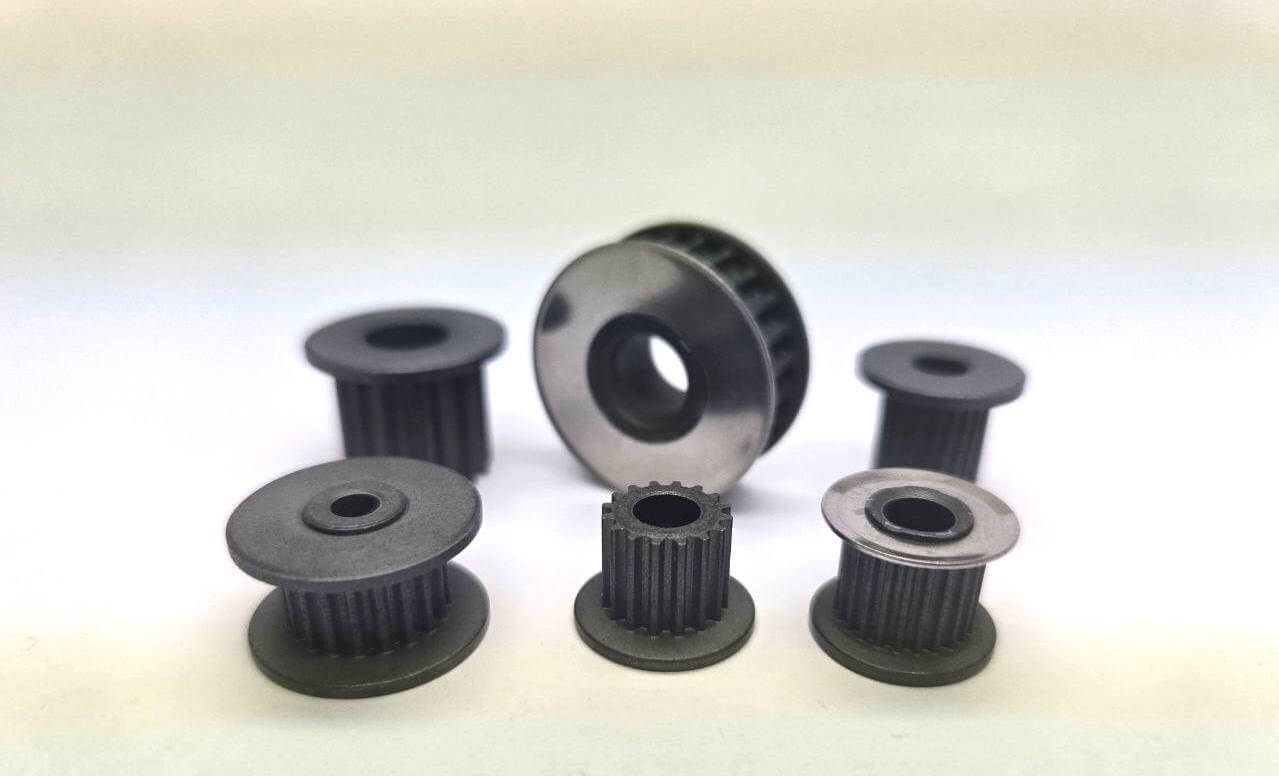

Precision Sintered Pulleys
Near-net-shape powder metal pulleys engineered for consistent dimensional accuracy and reliable belt drive performance — available in timing, V-belt, flat belt and step configurations from prototype to full mass production.
Precision Belt Drive Components at Scale
Sintered pulleys are manufactured through powder metallurgy — metal powder is compacted into a pulley-shaped die under high pressure and then sintered in a controlled atmosphere furnace. The result is a near-net-shape pulley with consistent tooth or groove profile, tight bore tolerances, and excellent dimensional repeatability across high-volume production runs.
The powder metallurgy process is particularly well-suited to pulley production because it allows complex tooth profiles, flanges, and bore features to be formed directly during compaction — minimising secondary machining and reducing overall component cost. For applications requiring thousands of identical units with consistent belt engagement geometry, sintered pulleys offer a significant advantage over machined or cast alternatives.
At Wisma Technology, we support your project from initial feasibility review and material selection through to prototype sampling and ongoing certified production supply.
Why Choose Sintered Pulleys
Consistent Tooth & Groove Profiles
Die compaction ensures every pulley has identical tooth or groove geometry — critical for reliable belt engagement and consistent power transmission across production batches.
Near-Net-Shape Efficiency
Complex pulley profiles including flanges, stepped bores, and tooth forms are produced directly during compaction — reducing machining operations and lowering unit cost.
High Volume Repeatability
Powder metallurgy tooling delivers consistent dimensional output across tens of thousands of units — ensuring belt drive systems perform identically across your entire production line.
Cost-Effective at Mass Production
Low per-unit cost at volume with minimal scrap — sintered pulleys offer a compelling cost advantage for high-volume household appliance and automotive belt drive applications.
Available Configurations
All pulley types are manufactured to your exact drawing specifications, tooth profile, bore size, and flange requirements.
Timing Pulleys
Sintered timing pulleys feature precision tooth profiles that mesh with timing belts to provide synchronised, slip-free power transmission. The consistent tooth geometry produced by powder metallurgy ensures reliable belt engagement and accurate positioning — essential in household appliances, office equipment, and automotive accessory drives where timing is critical.
V-Belt Pulleys
Sintered V-belt pulleys feature a trapezoidal groove profile that engages V-belts for efficient, vibration-dampened power transmission. The wedge action of the V-belt in the groove provides high friction and effective slip control — making them well-suited to variable-load applications in industrial machinery and household appliances.
Flat Belt Pulleys
Sintered flat belt pulleys provide a smooth, cylindrical contact surface for flat belts operating at high speeds with low slip. Their simple geometry and consistent surface finish make them an efficient, low-maintenance option for light-duty drives in household appliances, office equipment, and light industrial machinery.
Step Pulleys
Sintered step pulleys feature multiple diameter steps on a single pulley body, allowing belt position to be changed to achieve different speed ratios without additional components. Their compact, multi-diameter geometry is well-suited to powder metallurgy production — making them a cost-effective variable-speed solution for machinery and appliance drives.
Sintered Pulley Materials
Material selection is based on your load, speed, environment, and cost requirements — we advise on the best option during feasibility review.
Iron-Based (Fe)
Iron-based sintered pulleys offer high mechanical strength, excellent dimensional stability, and cost efficiency at volume. Composition is tailored to your load and wear requirements, with carbon and alloying element content adjusted to suit the application. The standard material choice for automotive and industrial belt drive applications where strength and repeatability are the primary requirements.
Iron-Copper (Fe-Cu)
Iron-copper sintered pulleys combine good mechanical strength with improved machinability and surface finish compared to pure iron-based compositions. The addition of copper enhances dimensional accuracy and provides a smoother groove surface — beneficial for timing pulley applications where precise tooth profile geometry and consistent belt engagement are critical to drive performance.
Applications for Sintered Pulleys
Our sintered pulleys are used in belt drive systems across demanding applications in multiple sectors worldwide.
Automotive
Accessory belt drives, window regulator systems, seat adjustment mechanisms, and HVAC drives requiring consistent, high-volume sintered pulley components.
Household Appliances
Washing machine drum drives, vacuum cleaner belt systems, stand mixer transmissions, and air conditioning fan drives requiring reliable, low-cost sintered pulleys at volume.
Industrial Machinery
Conveyor drives, actuator systems, gear reducer inputs, and general industrial belt drive applications requiring consistent pulley geometry across long production runs.
Office Equipment
Printers, copiers, and document handling systems where precision timing pulleys are required for accurate paper feed and synchronised drive systems.
Our Process & Lead Time
We manage the full supply chain from feasibility review through to delivery — one reliable partner at every stage of your project.
Enquiry & Feasibility Review
Submit your drawing or requirement. We review for manufacturability and provide feedback within 3–5 working days.
Quotation
Detailed quotation covering tooling, unit price, and lead time based on your specifications and volumes.
Prototype Sampling
Initial samples produced and delivered for your validation and approval before committing to mass production.
Mass Production & Delivery
Full production with dimensional verification, delivered to your facility or warehoused for scheduled release.
Lead time applies to mass production orders from confirmed purchase order. Prototype sampling timelines discussed at quotation stage. Rush orders subject to capacity — contact us to discuss your timeline.
Need Sintered Pulleys for Your Application?
Send us your drawings and we'll provide a feasibility review and quote within 3–5 working days.
